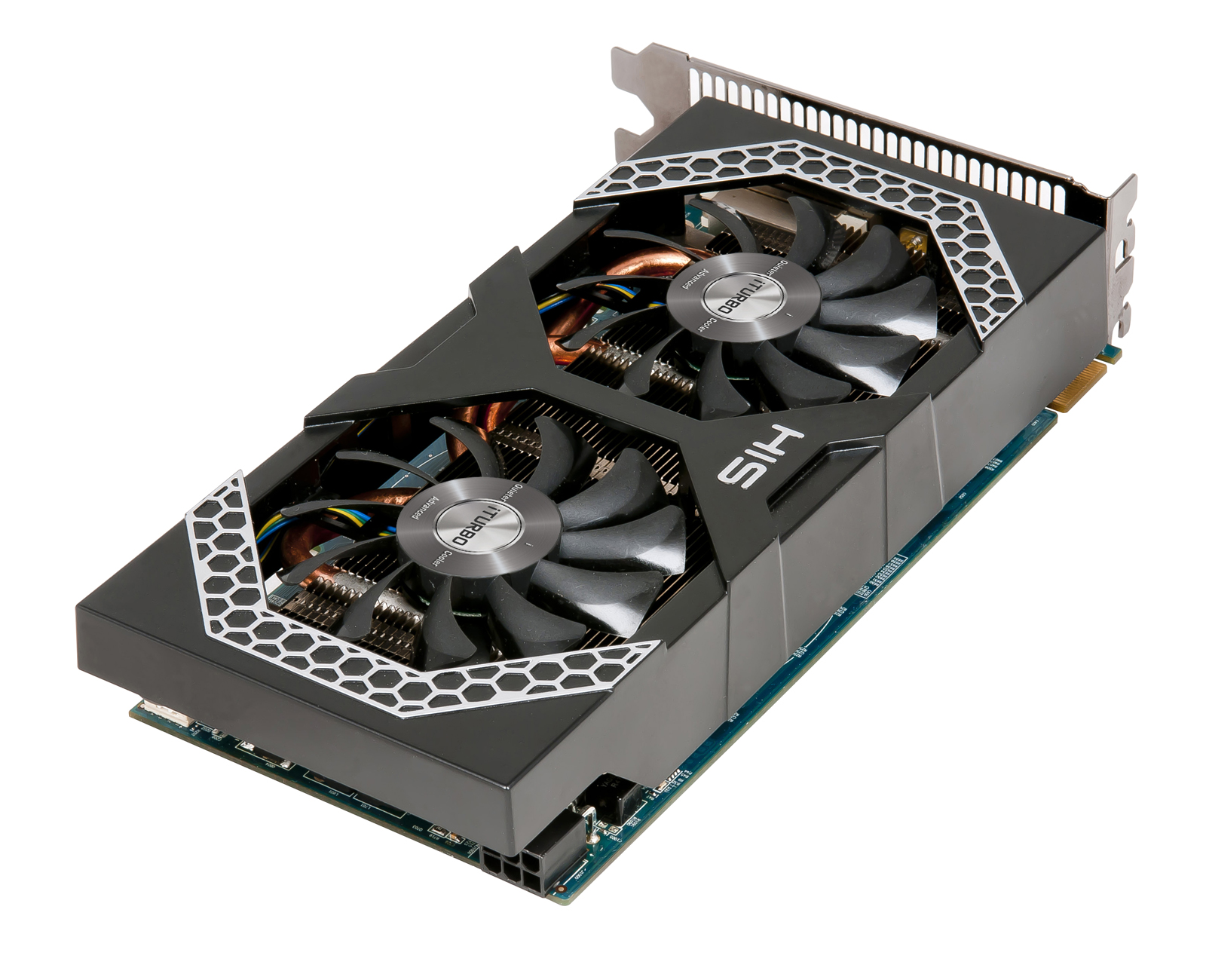

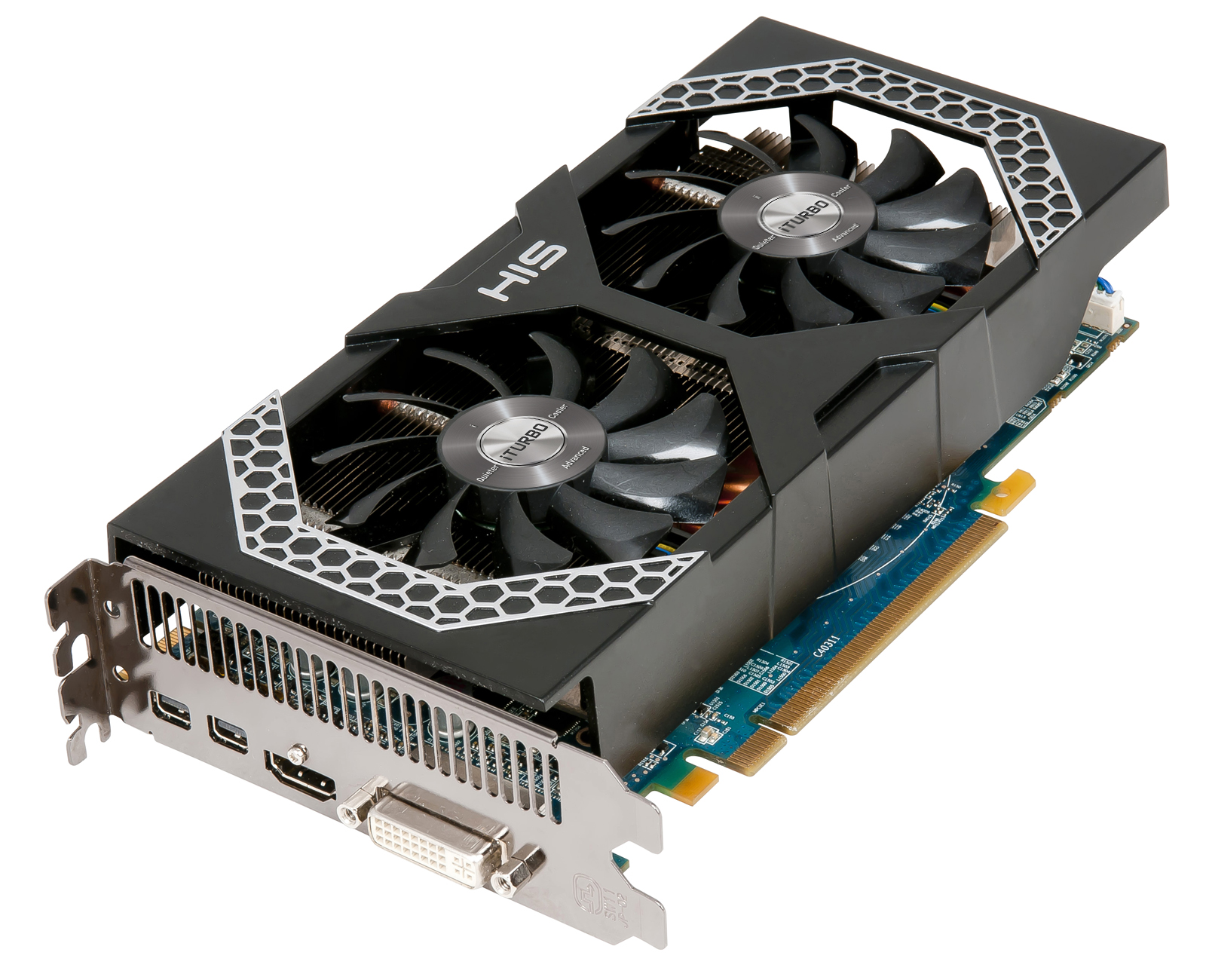

HIS 7850 iPower IceQ X² 2GB GDDR5 PCI-E DVI/HDMI/2xMini DP
  • H785QM2G2M_all_1600.jpg
  • H785QM2G2M_01_1600.jpg
  • H785QM2G2M_02_1600.jpg
  • H785QM2G2M_04_1600.jpg
  • H785QM2G2M_06_1600.jpg
  • H785QM2G2M_07_1600.jpg
  • H785QM2G2M_08_1600.jpg
  • H785QM2G2M_3d_box_1600.jpg
Produkt-Code H785QM2G2M
EAN-Code 4895139008449
Kühler IceQ X²
GPU 7850
Core-Takt 860 MHz
Speichertakt 4800 MHz
Speichergröße 2048 MB
Speichertyp GDDR5
Speicher-Interface 256 bit
Interface PCI Express 3.0 x16
Produktabmessungen 22.4 x 12.2 x 4.2 cm
Verpackungsabmessungen 30.33 x 19.1 x 9.45 cm
Availability

  • iPower
  • Windows 7 Compatibility
  • AMD Radeon Graphics
  • AMD Vision Technology
  • AMD HD3D Technology
  • AMD Eyefinity Technology
  • DirectX 11
  • IceQ X²
  • PCI Express 3.0
  • UEFI
  • OpenGL 4.2
  • 1080p
  • HDMI
  • HDTV
  • Dual Monitor
  • Shader Model 5
  • Gaming
  • Mini DisplayPort
  • Native HDMI
  • Retail Pack

HIS 7850 iPower IceQ X² features iPower for more voltage, IceQ X² is cooler & quieter, iTurbo.

iPower: More Voltage, More Overclocking!

Increased Power supply input for more voltage for overclocking! The extra PWM phase for core voltage provides extra power stability, lower temperature for power components!



HIS 7850 iPower IceQ X²
AMD 7850 Ref Board
PWM Phase 5+1+1+1=8 4+1+1+1=7
Mosfet Dr. Mos Original Mos



IceQ X²  – Cooler, Quieter

Cooler

With IceQ X², the card is cooler than the reference cooler.


Quieter
IceQ X² is one of the quietest coolers, making the card quieter than the reference cooler.  The card is below 28dB when watching movies, surfing Facebook, working. The card remains quiet whether you are gaming, online socializing, entertaining or working.

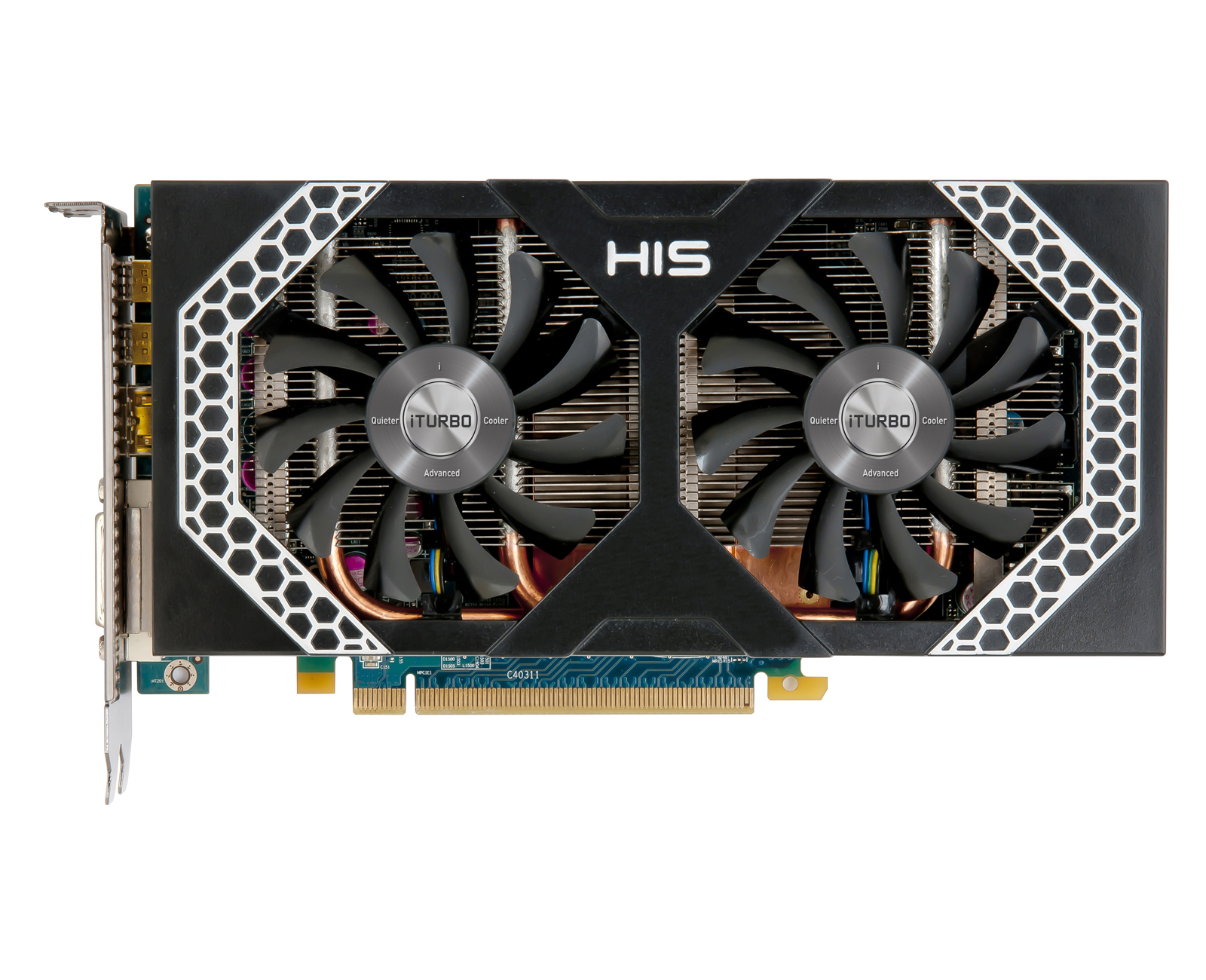

Fan Design
The super large 2x 75mm dual axial fans draws massive amount of cool air to cool the GPU directly.

The Q&C fan blade increases air velocity make cooling more efficiently while keeping noise level at minimum.

The fan is extremely durable with a life span of up to 50,000 hours.

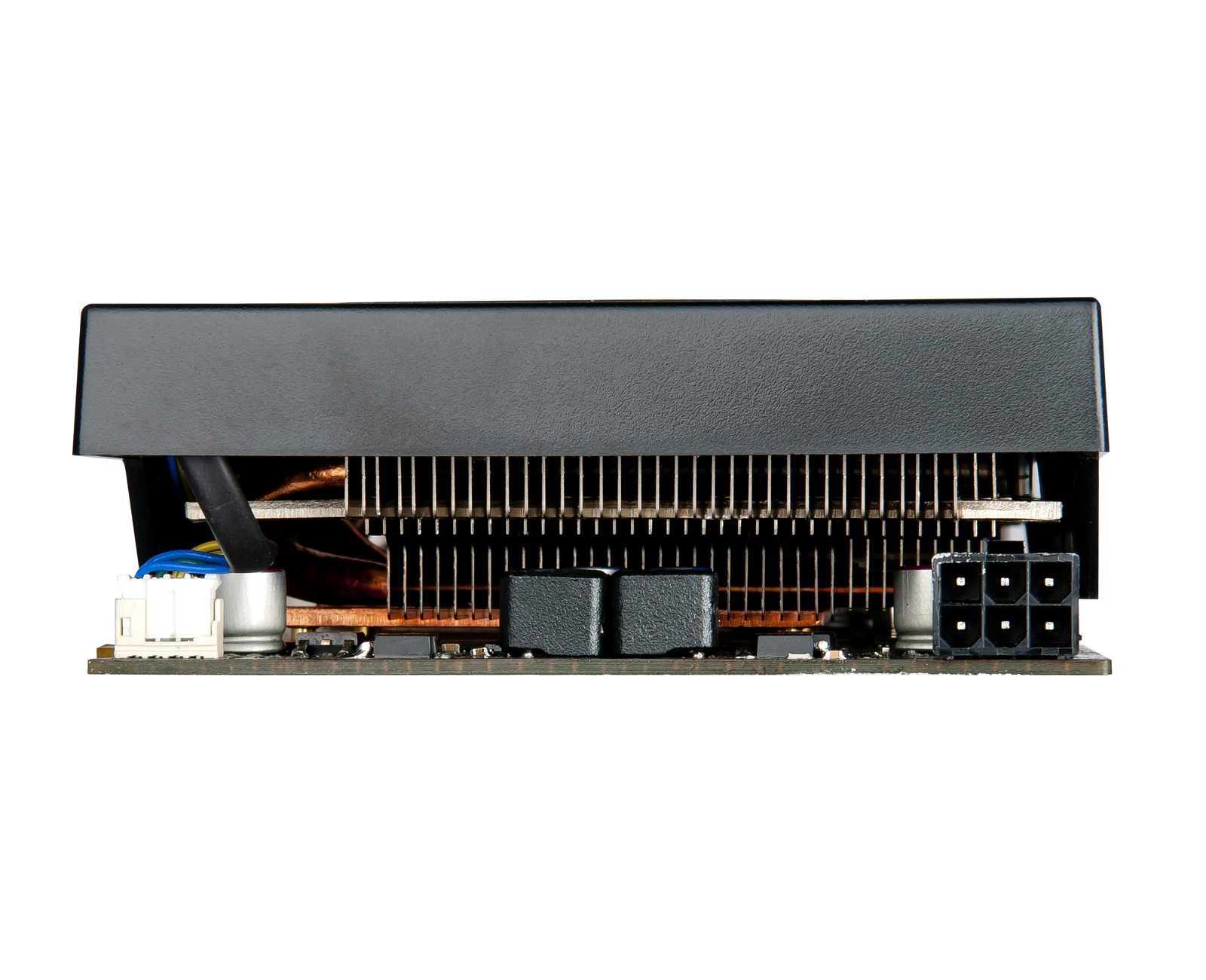

3x 6mm wide heatpipes optimize cooling performance by removing heat from the core area.

The extra large 62x62mm copper heatsink provides a large area to dissipate heat efficiently.

The card also carries memory and mosfet heat sinks to provide extra heat dissipation from these areas.

The card also features fan control and monitoring, you are able to read fan speed & Asic temperature from iTurbo or other softwares.

Long Lasting Design: Safer, Last Longer!

Enhances stability in critical gaming situations!
HIS cards are engineered with the highest standard of safety, preventing them any potential damages. Full Solid State Capacitors ensures the best power quality and enhances the card’s stability in critical gaming situations!

Built for Crossfire

CrossFireX Ready!
The card's is armed with Crossfire Connector, ready for CrossFire & strengthened performance!

New Technology, New Experiences

GCN

With AMD GCN technology, the card optimizes DirectX® 11.1 gaming performance automatically up to 2.5 times faster! It also offers up to 4.5x compute performance and up to 95% lower GPU Idle Power Consumption!

Apps Faster & Smoother!

The card enables a “quality graphics” experience on everyday applications, giving huge performance boosts on image processing, file compression, media converter apps, and a lot more!
• Adobe Photoshop CS6
• Corel Winzip 16.5
• Musemage
• Handbrake
• MotionDSP Vreveal
• GIMP
• Cyberlink Power Director
• ArcSoft Media Converter

PCI-e 3.0 Support

Armed with the latest PCI-e 3.0 bus design maximizes performance by delivering double bandwidth per lane of PCI-e 2.x. Paired the card with the latest platforms and get the ultimate performance!

More Graphics, Less Power!

The new architecture of the card gets more usable processing power for your money, enabling better frame rates in the latest games at high resolutions.  In addition, with AMD ZeroCore Power & AMD PowerTune technologies, you can optimize the balance between performance and power consumption of your system by adjusting the engine clock during runtime of the card. Manage the power and keep your wallet loaded!

See More, Enjoy More!

The card supports 30” LCD monitor and any large size TV up to 80" feature with 16:9 ratio in amazing 4096 by 2160 resolution. Up-scaling your computer into a multimedia center with the biggest display!


Enjoy HD Beauty
With Full HD 1080p support, the card delivers high quality 1920X1080 graphics, enabling seamless full-screen video playback. See HD, hear HD and feel HD - Enjoy the beautiful graphics now with the card!


Enjoy Copy Protected Movies
The card is HDCP complaint, enabling users to play copy-protected content, such as commercial DVD movies.


Enjoy True to Life Graphics
Quad HD videos have resolution four times that of current HD videos, meaning images too clear that may deceive your eyes! With the card, you are set for getting the movie theater experience to your home. You may be able to watch a video shooting the Eiffel tower and zoom it in to see your friend’s face clearly from the top! Get your eyes impressed and enjoy mind-blowing graphics with extreme clarity, depth and texture!


See more, Win More!
The card is capable to turn your computer into a super gaming machine. Enjoy the latest 3D games with stunning graphics and effects that your enemies cannot match! Get an immersive experience with AMD Eyefinity “2.0”!

Expand your game across up to 4 displays while your opponents have one monitor. Along with all-new support for stereo 3D, universal bezel compensation and brand new display configurations, take the unfair advantage over your opponent and win more with the surround sight

View More, Work Better

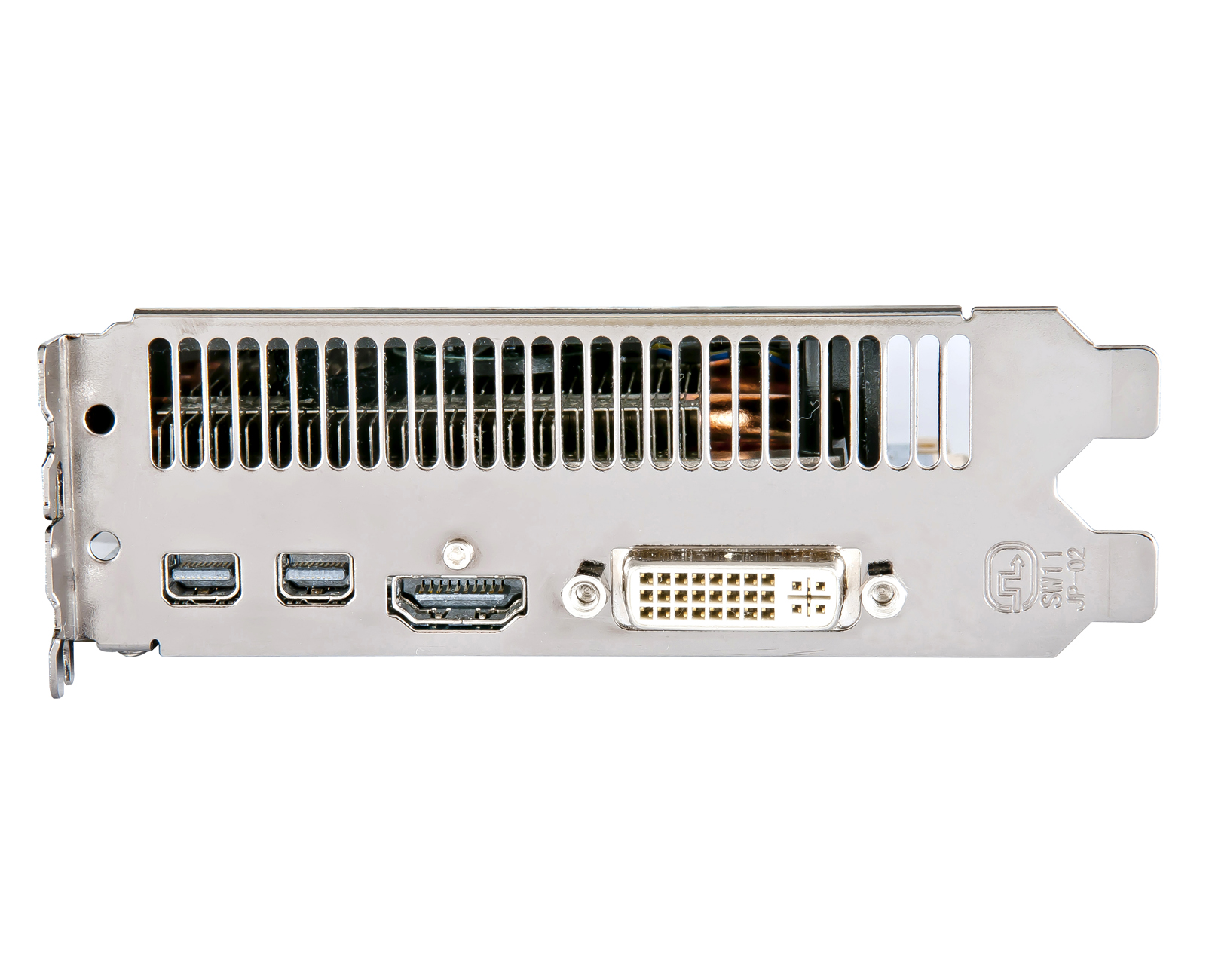

Having one dedicated screen just for twitter or Facebook and a second for outlook is not a dream anymore. The card features 2 Mini-display Ports for enhanced workspace flexibility. You can easily connect to two displays, including the 27” Apple LED Cinema Displays with the two Mini DisplayPorts. The dual-link DVI port allows you connect to a 30” DVI display up to 2560x1600. Resolution can even reach 4096x2160 with HDMI® , good for TV up to 80"!

Hear Better in Video Conference
Most GPUs today support only one audio stream at a time. The card, however, has Discrete Digital Multi-Point Audio that can simultaneously output multiple, independent audio streams. Audio seamlessly follows the video, providing affordable multi-display, multi-audio conferencing for consumers!

The card is an ideal solution for all those who rely on having several applications visible simultaneously for extra productivity. Multi-tasking just got a lot simpler! Make your computer a multi-display workstation!

HIS Products Advantage
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Professional customer service and technical support

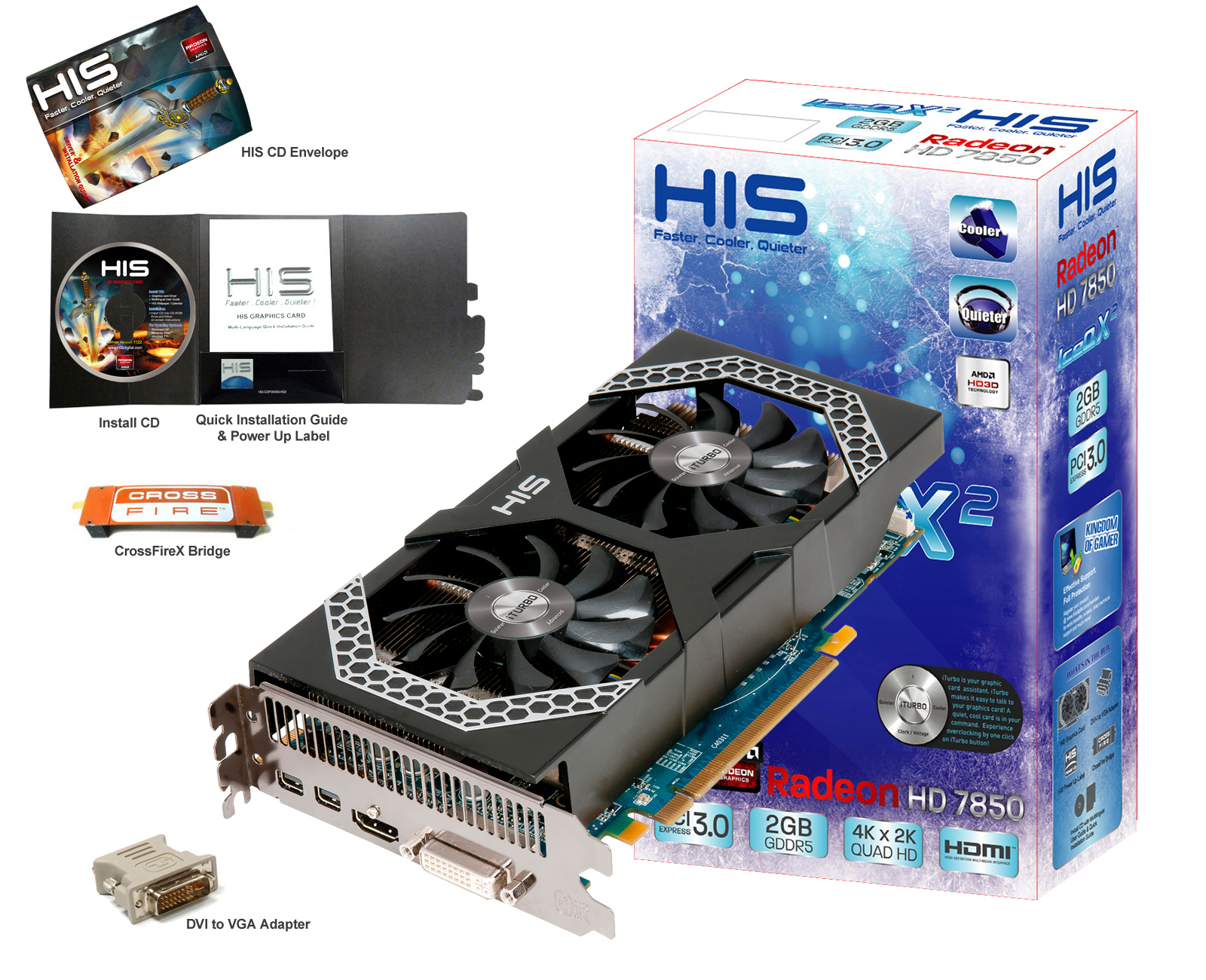

What's in the box
  • HIS Graphics Card
  • CrossFireXTM Bridge
  • DVI-VGA Adapter
  • Install CD with Multilingual User Guide
  • Quick Installation Guide
  • HIS Power Up Label
Model Name HIS 7850 iPower IceQ X² 2GB GDDR5 PCI-E DVI/HDMI/2xMini DP
Chipset Radeon HD 7850 PCIe Series
ASIC RadeonTM HD 7850 GPU
Manu. Process (Micron) 28nm
Memory Size (MB) 2048
Memory Type GDDR5
Engine CLK (MHz) 860MHz
Memory CLK (Gbps) 4.8Gbps
Memory Interface (bit) 256bit
Power Supply Requirement 500 Watt or greater power
Max. Resolution 4096x2160 per display (DisplayPort 1.2)
2560x1600 per display (Dual-link DVI)
Bus Interface PCI Express 3.0 x16
Mini Display Port 2
HDMI Yes
DVI Dual-link DVI-I
VGA No



HIS 7850 System Requirement

  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
  • 500W (or greater) power supply with one 75W 6-pin PCI Express® power connector recommended
  • Certified power supplies are recommended. Refer to http://support.amd.com/us/certified/power-supplies/Pages/listing.aspx for a list of Certified products
  • Minimum 1GB of system memory
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray™ playback requires Blu-ray drive
  • The operation of AMD CrossFire™ technology in dual mode requires a second AMD Radeon™ HD 7800 Series graphics card and an AMD CrossFire™ Ready motherboard
