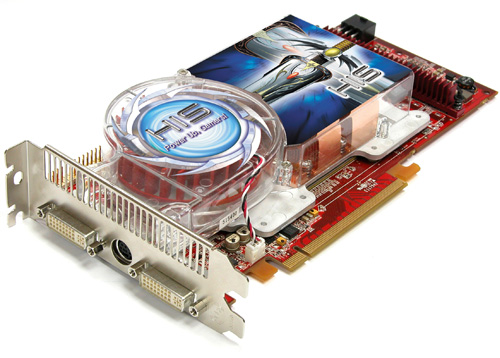

HIS X1950XT Dual DL-DVI VIVO 256MB GDDR3 PCIe
  • X1900_UserGuide_atiSupport_2k60125.pdf
  • X1950XT-card_500
  • X1950XT-3D-Box_250
Product Code H195XT256DV-R
Cooler Fan
GPU 1950XT
Core Clock 625 MHz
Memory Clock 1800 MHz
Memory Size 256 MB
Memory Type GDDR3
Memory Interface 256 bit
Interface PCI-Express x16
Availability Discontinued




  • Powered by ATI Radeon X1950XT - 625MHz
  • 256MB-256bit 8 channel GDDR3 memory - 1.8GHz
  • 48 Pixel shader processor
  • 8 Vertex shader processor
  • Ultra-threaded SM 3.0 Engine
  • 512-bit Ring-bus
  • ATI Avivoℿ/li>
  • High Precision Architecture
  • CrossFireℿSupport
  • PCI Express® x16 lane native support
CHIPSET FEATURES
  • R580+ process
  • 48 Pixel Shader Processors
  • Vertex and Pixel Shader 3.0
  • Dynamic Flow Control
  • 128-bit FP32 Processing
  • 1024 instruction slots Shaders
  • 512-bit Ring Bus
  • High Dynamic Range rendering
  • 6X Adaptive AA
  • H.264 Accelerated
  • Dual DL-DVI + VIVO
  • CrossFire support
  • DirectX® 9 and OpenGL® supported
HIS PRODUCTS ADVANTAGE
  • HIS delivers Faster, Cooler, Quieter plus the best quality product!
  • Platinum packing with software bundle
  • Professional customer service and technical support
ACCESSORIES
SOFTWARE BUNDLED
  • Microsoft Dungeon Siege Full
  • 3D Album PicturePro
  • PowerDirector 3 SE Plus
  • Power2Go 4
  • PowerDVD 6

    • (Bundle items are subject to change without prior notice)
CABLE/ADAPTOR BUNDLED
  • VIVO Cable
  • HDTV Output cable
  • DVI to VGA Dongle x 2
Model Name
HIS X1950XT Dual DL-DVI VIVO 256MB GDDR3 PCIe
Chipset
Radeon X1950 PCIe Series
ASIC
R580+
Pixel Pipelines
16
Vertex Engines
8
Manu. Process (Micron)
90nm
Transistor
Fill Rate
30GPixel/s
Memory Size (MB)
256
Memory Type
GDDR3
RAMDAC (MHz)
400 Dual
Engine CLK (MHz)
625
Memory CLK (MHz)
1800
Memory Interface (bit)
256
Memory Bandwidth
57.6GB/s
Max. Resolution
2560x1600
Bus Interface
PCIe
VGA
Yes
2nd VGA
Yes
DVI
Yes
2nd DVI
Yes
TV-out
Yes
HDTV (YPrPb component output)
Yes
Video-in
Yes
TV Tuner
No
FM Tuner
No

X1950 class extreme performance

Designed from the ground up to deliver maximum graphical detail, the HIS X1950 runs up to 12% faster than award winning X1900XT. I delivery superior image quality and support full HD video (1080p). In addition, it is CrossFireℿready, allowing your greatest multi-GPU fantasies to come true.

The HIS X1950 ups the ante with Avivoℿvideo and display technology that delivers movies, games, and photos in high-definition with stunning color and realism.

CrossFireℿReady for Extreme, Accelerated Gaming
HIS CrossFireℿaccelerates all your games, all the time, and delivers the highest image quality modes and resolutions with no special software or patches needed for compatibility.
